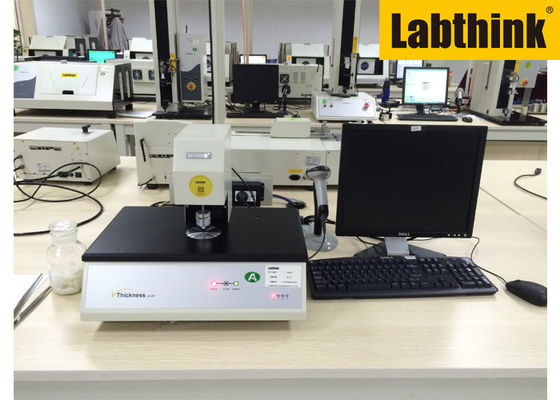

Laboratory Precise Benchtop Thickness Measurement Equipment With LCD Display CHY-C2A
Test Method | Mechanical Contact Method | Test Range | 0~12mm |
---|---|---|---|
Accuracy | 0.1 μm | Stadards | ASTM D374, ASTM D1777 |
Instrument Dimension | 461 Mm (L) X 334 Mm (W) X 357 Mm (H) | Net Weight | 32 Kg |
High Light | Film Thickness Measurement Device,Thin Film Thickness Measurement Instruments |
Laboratory Use LCD Display Thickness Measurement Equipment for Paper and Plastic Films
CHY-C2A Thickness Measurement Equipment is based on mechanical contacting method, and is applicable to thickness test of plastic films, sheets, diaphragms, paper, foils, silicon wafers and other materials within specified range.
Thickness Measurement Equipment conforms to ISO 4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702
Features
- Automatic lifting presser foot facilitates
- Manual or automatic operating mod
- Displays real-time data of maximum, minimum, average
- Controlled by micro-computer
- RS232
- Micro printer
Specifications
Test Range | 0~2 mm (standard) |
0~6 mm, 12 mm (optional) | |
Resolution | 0.1 μm |
Test Pressure | 17.5±1 KPa (film) |
50±1 KPa (paper) | |
Contact Area | 50 mm2 (film) |
200 mm2 (paper) |
