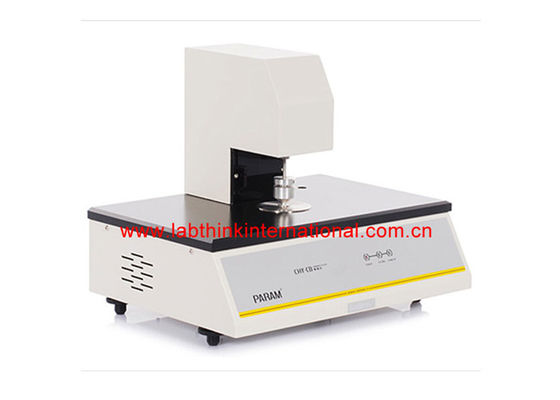

High Resolution Thickness Measurement Equipment For Thin Films / Paper

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number CHY-CB
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Range 0~12 Mm Package Veneer Case
Warranty 12 Months Instrument Dimension 461 Mm (L) X 334 Mm (W) X 357mm (H)
Net Weight 37kg Test Applications Thin Films And Paper
High Light

Film Thickness Measurement Device

,

Thickness Measurement System
Leave a Message
Product Description

ISO 4593 Resolution 0.1 Micron Plastic Film Thickness Testing Instrument



Thickness is an important property of a packaging material. CHY-CB thickness testing instrument is used to test  thickness of plastic films, sheets, paper, foils, silicon wafers and sheetings.





Test method: Mechanical contacting method.



Standards: ISO 4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777



Applications: Films, sheetings, paper, paper board, foils, textiles, fabric etc.



Features:



  • Automatic lifting presser foot
  • Manual or automatic operating mode
  • Displays the real-time data of maximum, minimum, average
  • Equipped with Labthink's latest intelligent operating software





Specifications:

Test Ranage 0~2 mm (standard)
0~6 mm, 12 mm (optional)
Resolution 0.1 μm
Test Speed 10 times/min (adjustable)
Test Pressure 17.5±1 KPa (film)
50±1 KPa (paper)
