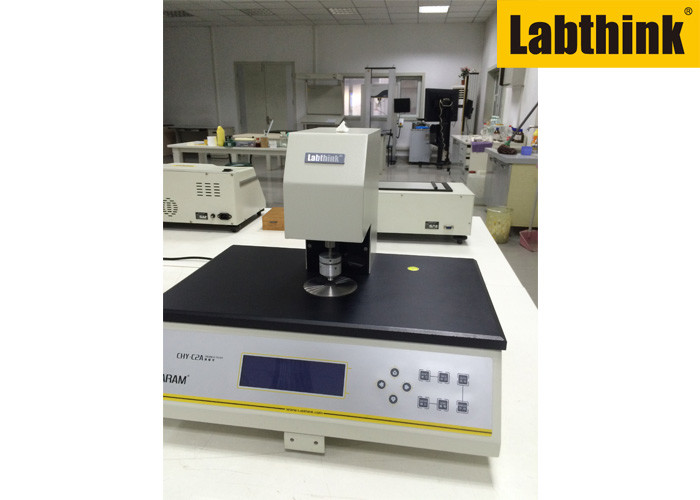

Mechanical Contacting Thin Film Thickness Measurement Instruments 0.1 μM Accuracy

  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number CHY-C2A
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Method Mechanical Contact Method Test Range 0~12mm
Accuracy 0.1 μm Training Free, Door-to-door
Package Veneer Case Warranty 12 Months
High Light

Film Thickness Measurement Device

,

Thin Film Thickness Measurement Instruments
Leave a Message
Product Description

Mechanical Contacting Method Thickness Measuring Machine Conformed to ISO 3034



Product name: CHY-C2A Thickness Measuring Machine

Test method:  mechanical contacting method,

Test materials: plastic films, sheets, diaphragms, paper, foils, silicon wafers and other materials within specified range.



Standards

CHY-C2A Thickness Measuring Machine conforms to ISO 4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702



Specifications

Test Range 0~2 mm (standard)
0~6 mm, 12 mm (optional)
Resolution 0.1 μm
Instrument Dimension 461 mm (L) x 334 mm (W) x 357 mm (H)
Net Weight 32 kg





Features

  • Displays real-time data of maximum, minimum, average
  • Controlled by micro-computer
  • RS232
  • Micro printer

Mechanical Contacting Thin Film Thickness Measurement Instruments 0.1 μM Accuracy 0
