Plastic Bottle Vacuum Leak Test Apparatus , Vacuum Leak Detection System MFY-01

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number MFY-01
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Method Bubble Emission Vacuum Degree 0 ~ -90 KPa
Accuracy 1% FS Instrument Dimension 300 Mm (L) X 380 Mm (W) X 450 Mm (H)
Net Weight 12 Kg
High Light

Vacuum Leak Test Apparatus

,

Vacuum Leak Testing Machine
Leave a Message
Product Description

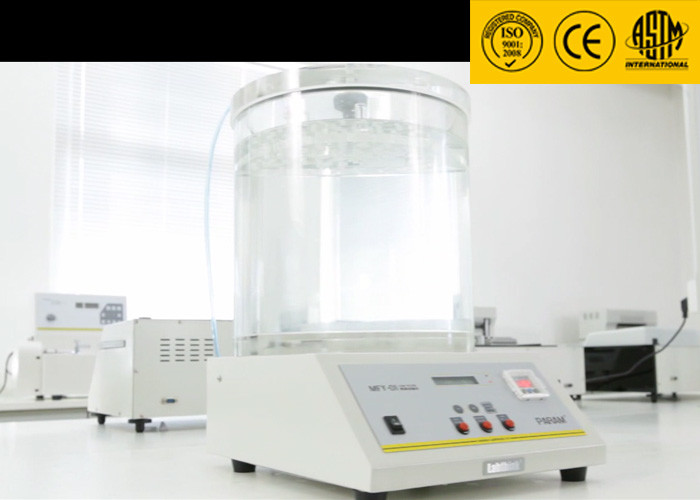

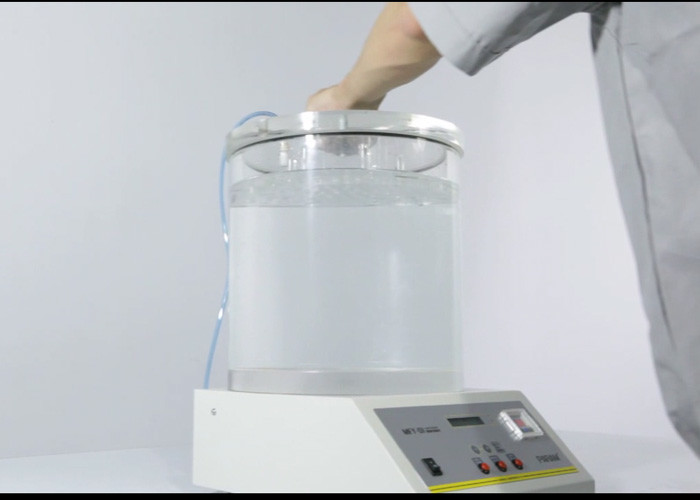

Plastic Bottle Vacuum Leak Test Apparatus , Vacuum Leak Detection System MFY-01



MFY-01 Vacuum Leak Test Apparatus is designed according to ASTM D3078 (bubble emission method) and applicable to the leakage determination of packages for food, medical instruments, daily chemical products, cars, electronic components, stationeries and other industrial products.



Specifications

Vacuum Degree     0 ~ -90 KPa

Accuracy               1% FS

Vacuum Chamber  Φ270 mm x 210 mm (H) (standard)

                              Φ360 mm x 585 mm (H) (optional)

                              Φ460 mm x 330 mm (H) (optional)

                              Note: customization is available for other sizes



Applications

 Bottles, Pipes, Cans and Boxes as well as Pen Refills, medical instrument, etc.



Features

  • automatic compensation of constant pressure
  • controlled by micro computer
  • digital preset design of vacuum degree and vacuum retention time



Plastic Bottle Vacuum Leak Test Apparatus , Vacuum Leak Detection System MFY-01 0
