ASTM F1140 Packaging Burst Pressure Testing Machine for Package Seal Quality Test

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number LSSD-01
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Standards ISO 11607, ISO 11607, ASTM F1140, ASTM F2054 Gas Supply Pressure 0.4 MPa~0.9 MPa
Warranty 12 Months Instrument Dimension 300 Mm (L) X 310 Mm (W) X 180 Mm (H)
Package Veneer Case
High Light

Vacuum Leak Test Apparatus

,

Vacuum Leak Testing Machine
Leave a Message
Product Description

Packaging Burst Pressure Testing Machine for Package Seal Quality Test

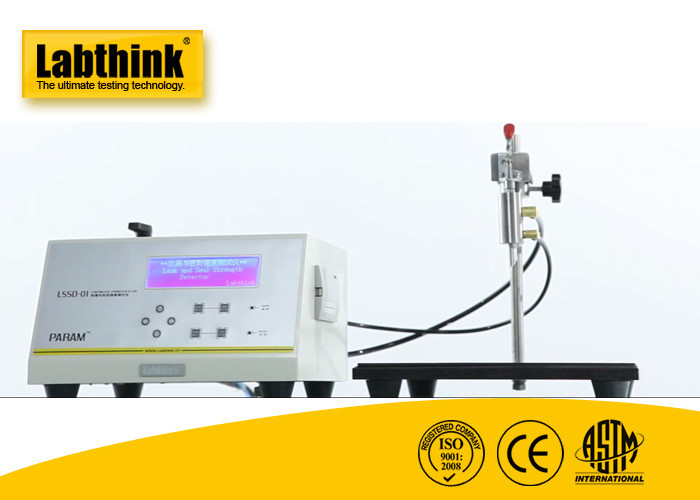

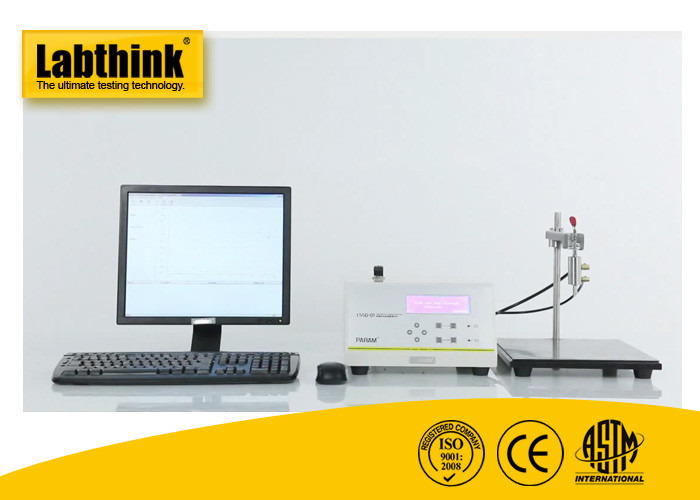

Labthink LSSD-01 Burst Pressure Testing Machine  is based on pressureized method for quantitative determination of seal performance, seal quality, burst pressure, compression resistance, torsion force and joint/disengaging force.



Applications:

flexible packages, aseptic packages, various plastic pilfer-proof closures, flexible tubes, caps and other materials



Specifications:

  LSSD-01
Test Range 0~600 KPa; 0~87.0 psi (standard)
0~1.6 MPa; 0~232.1 psi (optional)
Gas Injection Head Φ10 mm (standard)
Φ4 mm, Φ1.6 mm (optional)
Gas Supply Pressure 0.4 MPa~0.9 MPa (outside of supply scope)
Port Size Φ8 mm PU Tubing





ASTM F1140 Packaging Burst Pressure Testing Machine for Package Seal Quality Test 0
