Computer Controlled Seal and Leak Detection Equipment used for Aerosol Valve Leak Test

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number LSSD-01
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Range 0~600 KPa; 0~87.0 Psi Specifical Fixture Available
Certifications ISO 9001, CE, CANS Dimension 300 Mm (L) X 310 Mm (W) X 180 Mm (H)
Test Chamber Available Weight 23 Kg
High Light

Vacuum Leak Test Apparatus

,

Vacuum Leak Testing Machine
Leave a Message
Product Description

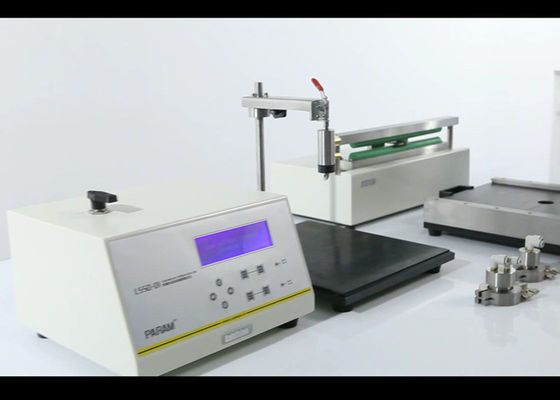

Computer Controlled Seal and Leak Detection Equipment used for Aerosol Valve Leak Test



Labthink LSSD-01 Seal and Leak Detection Equipment is based on pressureized method to measure Seal strength and performance of packages. It can also be used for aerosol valve leak test with specifical fixtures.



Features

  • controlled by micro computer with LCD display
  • Micro printer
  • RS232
  • professional software for data analysis
  • automatic statistics of data
  • conform to ISO 11607, ASTM F2054, ASTM F1140

Besides aerosol valve leak tester, The seal and Leak Detection equipment can be used for

  1. plastic bags,
  2. flexible tubes
  3. creep test of packages bags and boxes
  4. burst test of blister packages
  5. three-sided sealing packages

Specifications

  LSSD-01
Test Range 0~600 KPa; 0~87.0 psi (standard)
0~1.6 MPa; 0~232.1 psi (optional)
Gas Injection Head Φ10 mm (standard)
Φ4 mm, Φ1.6 mm (optional)
Gas Supply Pressure 0.4 MPa~0.9 MPa (outside of supply scope)
Port Size Φ8 mm PU Tubing



Computer Controlled Seal and Leak Detection Equipment used for Aerosol Valve Leak Test 0



Computer Controlled Seal and Leak Detection Equipment used for Aerosol Valve Leak Test 1
