Easy Operate Thickness Measurement Equipment Auto Sampling Mechanism
| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | CHY-CB |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Test Method | Contacting Method | Application | Plastic Films, Sheets, Paper, Foils, |
|---|---|---|---|
| Feature | Auto Sampling Mechanism | Resolution | 0.1 μm |
| Instrument Dimension | 461 Mm (L) X 334 Mm (W) X 357 Mm (H) | Package | Veneer Case |
| High Light | Thin Film Thickness Measurement Instruments,Thickness Measurement System |
||
Product Description

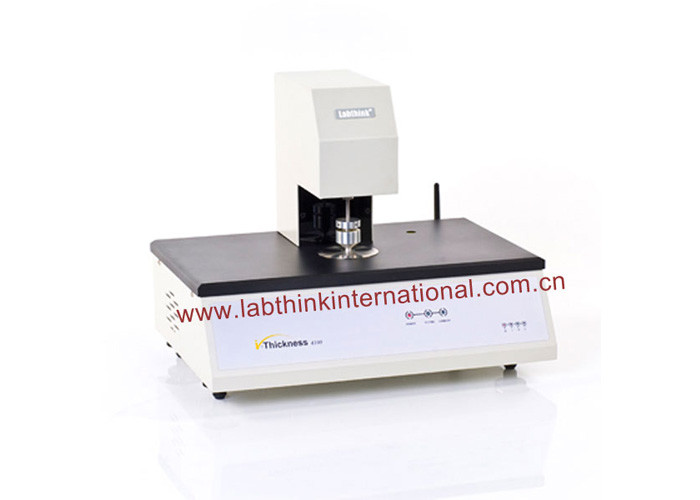

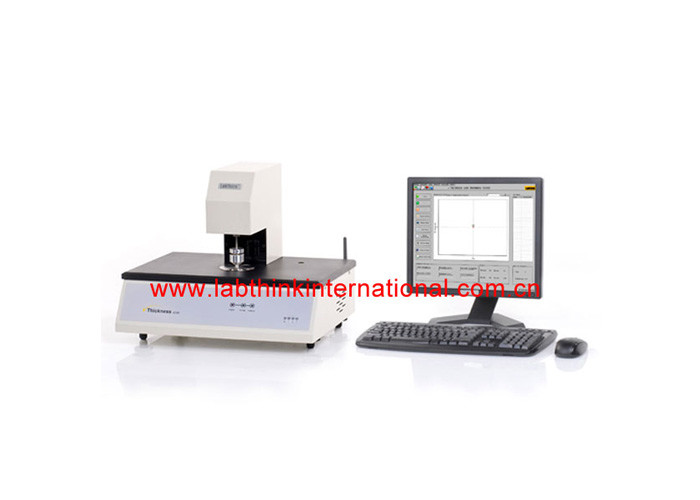

Labthink Newly Featured Thickness Measurement Equipment by Contacting Method
The Precise Thickness Measurement Equipment utilizes advanced technology to quickly and accurately measure the thickness of sheeted materials such as paper, plastic film, tissue and toweling, nonwovens, and textiles.
The Labthink Thickness Measurement Equipment is designed to be used in conjunction with other laboratory instruments for measuring the physical properties of materials.
Standards:
ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817. Can be configured to meet most thickness standards.
Features:
- Manual or automatic operating mode
- Automatic specimen feeding
- Displays the real-time data of maximum, minimum, average
- Equipped with RS232
- Controlled by micro-computer
Specifications
| CHY-CB | |
|---|---|
| Test Ranage | 0~2 mm (standard) 0~6 mm, 12 mm (optional) |
| Resolution | 0.1 μm |
| Test Speed | 10 times/min (adjustable) |
| Test Pressure | 17.5±1 KPa (film) 50±1 KPa (paper) |
| Contact Area | 50 mm2 (film) 200 mm2 (paper) Note: Select one presser foot for film or paper; Customization is available |
| Instrument Dimension | 461 mm (L) x 334 mm (W) x 357mm (H) |
| Power Supply | AC 220V 50Hz |
| Net Weight | 37 kg |
