Digital Controlled Heat Seal Tester / Heat Sealing Test Machine 0.5 MPa ~ 0.7MPa

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number HST-H3
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Sealing Area 330 Mm X 10 Mm Customization Service Available
Instrument Size 536 Mm (L) X 335 Mm (W) X 413 Mm (H) Sealing Pressure 0.5 MPa ~ 0.7MPa
After Service Available Training Free, Door-to-door
High Light

Seal Strength Testing Equipment

,

Hot Tack Tester
Leave a Message
Product Description

Heat Sealing Test Machine to test Heat Seal Strength of Food Packaging

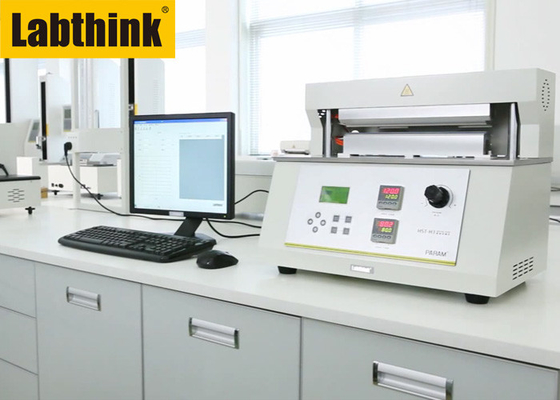

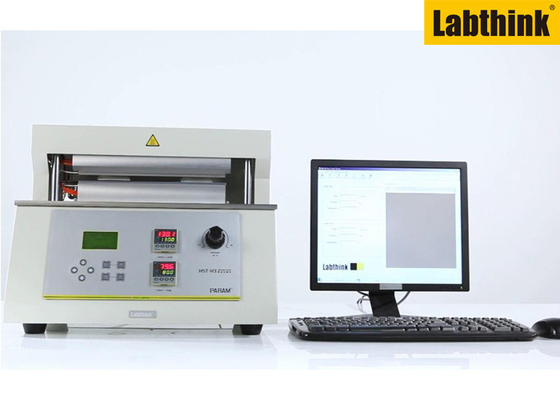

HST-H3 Heat Seal Tester is a precision heat sealer designed to duplicate heated crimp seals for the flexible food packaging industry.



The digitally controlled heat sealing Test Machine allows independent upper and lower seal jaw temperature. The controlled temperature is assured to -± 0.2°C across the entire width of the film sample. The dwell timer is switch controlled to insure actual dwell time on the seal specimen.



Standard Features



  • P.I.D Temperature Control
  • Independent upper and lower sealing temperatures
  • Sealing temperature range from ambient to 300°C
  • Footswitch
  • Safety guards and switches for safe operation
  • Conforms to ASTM F2029 Standard Practices for Making Heatseals for Determination of Heatsealability of Flexible Webs as Measured by Seal Strength

Specifications



  HST-H3
Sealing Temperature Room temperature ~ 300°C
Accuracy ±0.2°C
Dwell Time 0.1~999.9 s
Sealing Pressure 0.05 MPa ~ 0.7MPa
Sealing Area 330 mm x 10 mm (customization available)





Applications



Labthink Heat Sealing Test Machine apply to Adhesive and Label Testing, Film and Foil Testing, Package Testing, Plastic Testing
