Touch Screen Seal Testing Equipment , Hot Tack Tester High Precision

  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number HTT-L1
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Warrranty 12 Months Packages Veneer Case
Sealing Temperature Room Temperature ~ 250°C Training Free, Door-to-door
Sealing Area 100 Mm X 5 Mm Sealing Pressure 0.05 MPa~0.7 MPa
High Light

Hot Tack Tester

,

Laboratory Heat Sealer
Leave a Message
Product Description

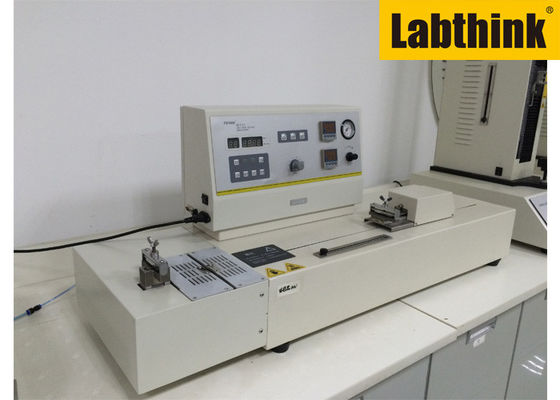

Touch Screen Precision Hot Tack Strength Tester for Packaging Seal Strength Testing



The HTT-L1 Hot Tack Strength Tester, accurate measurement of Hot Tack Seal Strength enables optimal balance of packaging cycle rate and seal integrity. Getting the variables wrong on the production line is a costly business in immediate wastage, or worst still, in expensive customer returns.





Labthink Hot Tack Seal Strength Tester has set the standard in precision and reliability for over 25 years. A touch screen user interface, options in sealing bar design, and standard user safety features means you can define the specification for your exact needs.



HTT-L1 Hot Tack Strength Tester conforms to ASTM F1921, ASTM F2029



Technical Specifications

Specifications HTT-L1
Sealing Temperature Room temperature ~ 250°C
Temperature Accuracy ±0.2°C
Dwell Time (Heat Seal) 0.1~999.9 s
Dwell Time (Hot Tack) 0.1~999.9 s
Sealing Pressure 0.05 MPa~0.7 MPa
Sealing Area 100 mm x 5 mm
Sealing Jaw Single sealing or double sealing (Customized)
Gas Supply Pressure 0.5 MPa ~ 0.7 MPa (outside of supply scope)
Port Size Φ4 mm PU Tubing
Instrument Dimension 1170 mm (L) x 360 mm (W) x 460 mm (H)
Power Supply AC 220V 50Hz
Net Weight 45 kg
Capacity Range 0 ~ 200 N (30 N, 50 N and 100 N are optional)
Accuracy 1% FS
