Professional Package Testing Equipment, ASTM E96 Cup method Water Vapor Permeability Tester

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number W3/031
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Method Cup Method Test Range 0.1~10,000 G/m2·24h
Accuracy 0.01 G/m2·24h Humidity Range 10%RH~98%RH
Weight 83 Kg Dimension 580 Mm (L) X 680 Mm (W) X 470 Mm (H)
Leave a Message
Product Description

Professional Package Testing Equipment, ASTM E96 Cup method Water Vapor Permeability Tester

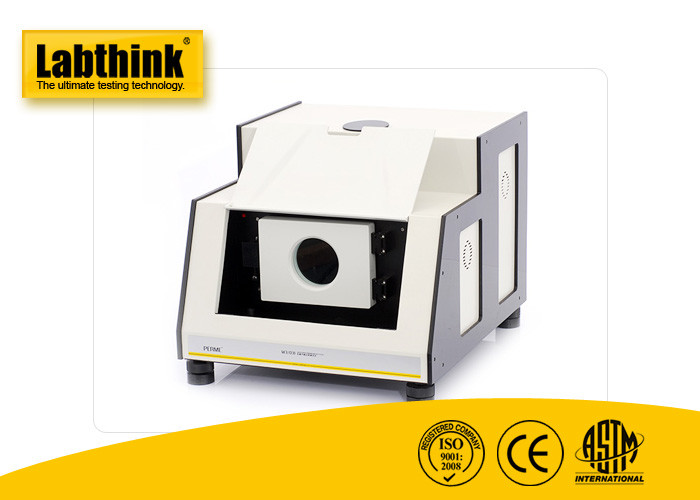

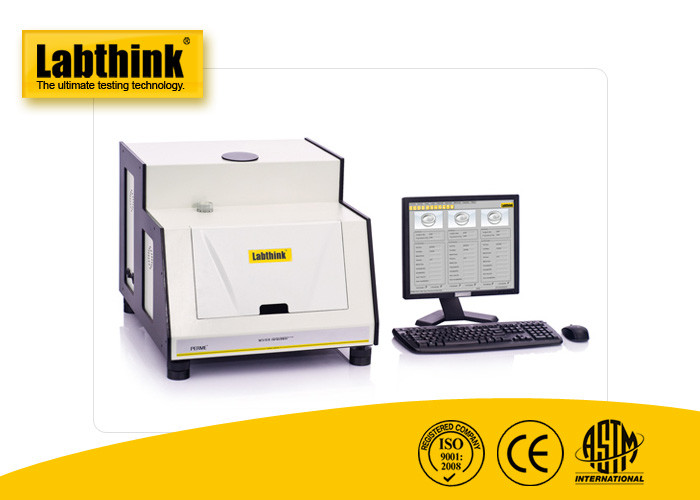

W3/031 Water Vapor Permeability Tester is based on the cup method, and is professionally applicable to the water vapor permeability test of film specimens according to ASTM E96



Professional

  • Wide range and high-precision of automatic temperature and humidity control
  • Convenient fast-access calibration ports
  • Reference film or standard weight for fast and accurate calibration

High-End

  • adopts Labthink's latest patent-design mechanical structure to get precision test data during weighing process
  • embedded computer control system provides a better performance than traditional single chip system.
  • Easily operated by a standard LCD monitor, a keyboard and a mouse

Standards

ISO 2528, GASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208, YBB 00092003



Applications

plastic films, Paper and Paper Board, Solar Back-sheet, Textiles and nonwovens



Specifications

Specifications water vapor transmission rate test system
Test Range 0.1~10,000 g/m2·24h (standard)
Number of Specimens 1~3 with independent test results
Accuracy 0.01 g/m2·24h
Resolution 0.0001 g
Temperature Range 15°C~55°C (standard)
Temperature Accuracy ±0.1°C (standard)
Humidity Range 10%RH~98%RH
Humidity Accuracy ±1%RH
Air Velocity 0.5~2.5 m/s (customization available)
Test Area 33 cm2
Specimen Thickness ≤3 mm (customization available)



Professional Package Testing Equipment, ASTM E96 Cup method Water Vapor Permeability Tester 0

Professional Package Testing Equipment, ASTM E96 Cup method Water Vapor Permeability Tester 1
