Digital Film Shrinkage Tester DIN 53369
| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | FST-02 |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Temperature Range | Room Temperature ~ 210°C | Number Of Specimens | 1 ~ 3 Groups |
|---|---|---|---|
| Net Weight | 68g | Instrument Dimension | 735 Mm (L) X 490 Mm (W) X 391 Mm (H) |
| Warranty | 12 Months | ||
| High Light | Film Free Shrink Tester,Fabric Air Permeability Tester |
||
Product Description

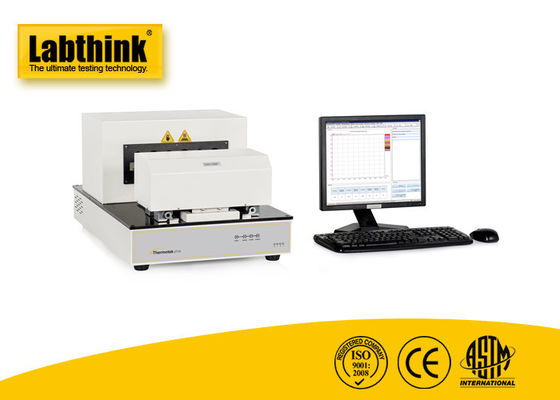

DIN 53369 Digital and Intelligent Thermal Shrinkage Tester
FST-02 Thermal Shrinkage Tester is applicable to the precisely quantitative determination of the shrinking force, contracting force and shrinkage ratio for heatshrinkable plastic films during the thermal shrinkage process.
Principle
Specimens connected to load cells or displacement transducers are rapidly brought up to the shrinkage temperature, then cooled in the open air to a specified temperature. During this process, the system records the real-time temperature,shrinking force, contracting force and shrinkage ratio and conducts analysis for test results.
Specifications
| Capacity Range | 0.2 ~ 30 N (standard) |
| Customization Available | |
| Accuracy | ±0.2% |
| Displacement Range | 0.125 ~ 70 mm |
| Accuracy | ±0.125 mm |
| Temperature Range | Room temperature ~ 210°C |
| Accuracy | ±0.5°C |
| Number of Specimens | 1 ~ 3 groups |
| Specimen Size | 130 mm x 15 mm (Standard) |
| Gas Supply | Dry Air (outside of supply scope) |
| Port Size | Φ6 mm PU Tubing |
Features
1. 3 groups of distinct or identical specimens can be tested at one operation
2. Shrinkage parameters can be accurately obtained by high precision load cell and displacement transducer
3. The system displays the real-time value of shrinking force, contracting force and shrinkage ratio
4. Intelligent reminder for sensor calibration guarantees a safe test environment
5. Viewing and printing of historical data are available in this instrument
Other product:
RSY-R2 Film Free Shrink Tester
