Digital Air Permeability Test Equipment , Fabric Testing Equipment ASTM D737 Standard
| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | TQD-G1 |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Standard | ASTM D737 | Pressure Range | 0 ~ 1000 Pa |
|---|---|---|---|
| Flux Range | 0 ~ 30 L/min | Dimension | 502 Mm (L) X 334 Mm (W) X 298 Mm (H) |
| Warranty | 12 Months | Delivery | With In 7 Days After Payment |
| High Light | Air Permeability Test Equipment,Fabric Air Permeability Tester |
||
Product Description

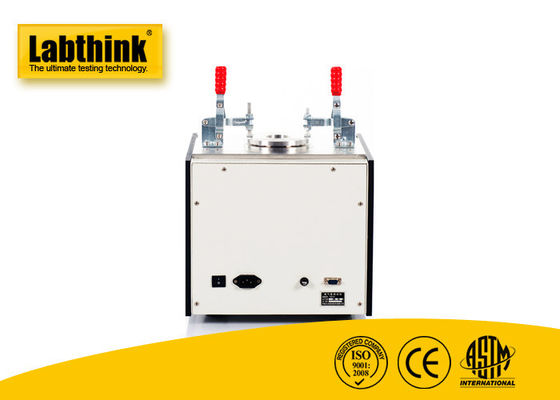

Digital Air Permeability Testing Instrument - Fabric Testing Equipment
Labthink TQD-G1 Air Permeability Testing Instrument measures the air permeability of filter papers, nonwovens and textile fabrics
Test Methods
Method A
Providing a constant air flux going through the specimen vertically, the air permeability could be obtained by measuring the pressure difference.
Method B
Providing the constant pressure difference between two sides of the specimen, the air permeability could be obtained by measuring the air flux through specific area in the certain time.
Test Standards
ASTM D737- Standard Test Method for Air Permeability of Textile Fabrics
Applications
- Decorating Articles of Cars
- Elastic and Porous Polymer Materials
- Texitles
- Leather
- paper
Specifications:
| Specifications | TQD-G1 |
| Test Range of Pressure | 0 ~ 1000 Pa |
| Test Range of Flux | 0 ~ 30 L/min |
| Specimen Size | Method A: 52 mm x 52 mm |
| Method B:Φ12 mm ≤ D(diameter) ≤ Φ71 mm | |
| Port Size | DIA 8 mm PU Tubing |
| Instrument Dimension | 502 mm (L) x 334 mm (W) x 298 mm (H) |
| Power Supply | AC 220V 50Hz |
| Net Weight | 27 kg |
FAQ
Q: How long is the delivery time?A: Five working days after we received your payment or order confirmed
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc
