Labthink Package Testing Equipment Film Free Shrink Tester - Heated by Air

Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number FST-02
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Warranty 12 Months Training Free, Door-to-door
Manufacturer Labthink Since 1989 Standard ISO 14616
Dimension 735 Mm (L) X 490 Mm (W) X 391 Mm (H) Specimen Size 130 Mm X 15 Mm (Standard)
High Light

Air Permeability Test Equipment

,

Fabric Air Permeability Tester

Leave a Message
Product Description

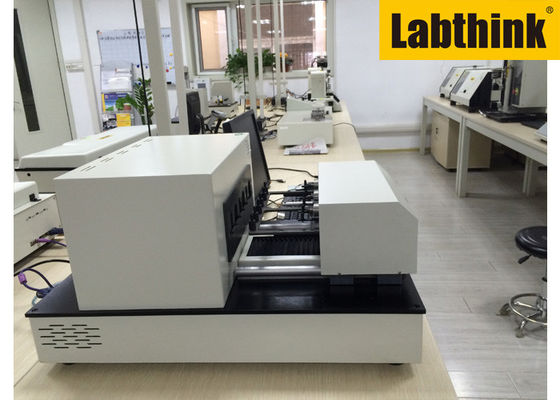

Labthink Package Testing Equipment Film Free Shrink Tester - Heated by Air



Labthink FST-02 Heat Shrinkage Tester is used to measure shrinking force, contracting force and shrinkage ratio of heat-shrinkable films.



Technical Specifications

Test Specs Capacity Range 0.2 ~ 30 N (Standard)
Customization Available
Force Accuracy ±0.2%
Displacement Range 0.125~70 mm
Displacement Accuracy ±0.125 mm
Test Temperature Room temperature~210 °C
Accuracy ±0.5 °C
Number of Specimens 1~3 groups
Specimen Size 130 mm x 15 mm (standard)





Principle

Specimens connected to load cells or displacement transducers are rapidly brought up to the shrinkage temperature, then cooled in the open air to a specified temperature. During this process, the system records the real-time temperature,shrinking force, contracting force and shrinkage ratio and conducts analysis for test results.



Features

  • Three groups of specimens can be tested simultaneously
  • Shrinking force, contracting force and shrinkage ratio are displayed in real time
  • Intelligent reminder for sensor calibration and recording of operation guarantee a safe test environment
  • Professional software supports test result assessment and instrument usage rate or test times analysis
  • Embedded computer control system provides safer and more reliable data management as well as test operation.
