Labthink Auto Tensile Testing Machine , Pull Off Tester for Rubber stoppers High Performance
| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | XLW(M) |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Test Stroke | 600 Mm | Load Cell Capacity | 500 N |
|---|---|---|---|
| Accuracy | 1% FS | Package | Veneer Case |
| Warranty | 12 Months | Training | Free, Door-to-door |
| High Light | Tensile Testing Equipment,Tensile Test Apparatus |
||
Product Description

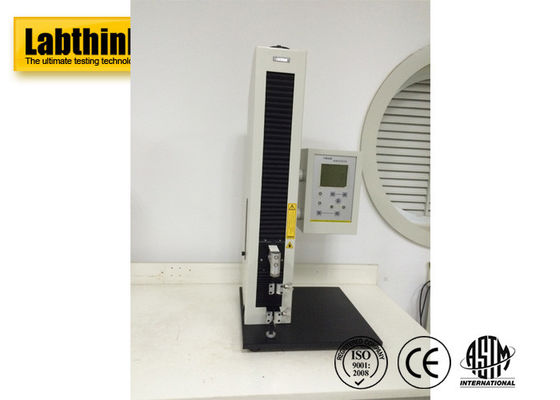

XLW (M) Pull off Tester Auto Stripping Tester of Rubber Stoppers and Bottle Caps
XLW (M) Pull off Tester can perform test items of tensile, peeling, deformation, tearing, heat seal, adhesive, and open force, etc.
Principle
The pre-conditioned specimen is mounted between two grips, which move in relative direction during the test. The changes of force and displacement are separately recorded by the load cell fixed on the driven grip and embedded displacement transducer. The tensile strength, tear strength and elongation rate can be obtained by further calculation.
Standards
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB/T 1130, GB 8808
Test Materials
plastic films, laminated materials, flexible packaging materials, plastic flexible tube, adhesives, adhesive tapes, pressure sensitive tapes, adhesive bandage (plaster), release paper, protective films, flip off cap, foil, diaphragm, back sheet, non-woven, rubber, and paper fiber, etc.
Technical Specifications
| Load Cell Capacity | 100 N, 200 N, 500 N (one of them is available) |
| Accuracy | 1% FS |
| Test Speed | 50, 100, 150, 200, 250, 300, 500 mm/min |
| Number of Specimens | 1 |
| Specimen Width | 30 mm (Standard Grip) 50 mm (Optional Grip) |
| Clamping Way | Pneumatic Specimen Clamp |
| Stroke | 600 mm |
| Pressure of Gas Supply | 0.5 MPa~0.7 MPa (outside of supply scope) |
| Port Size | Φ4 mm PU Tubing |
