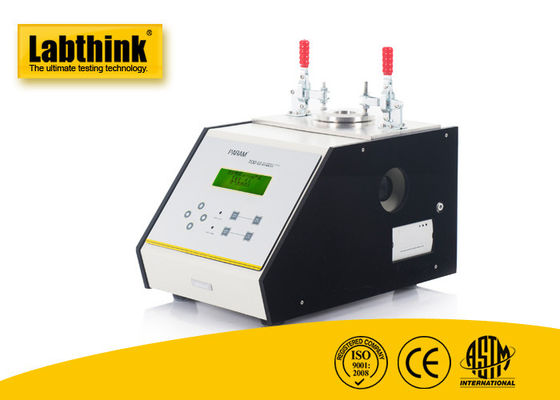

Gas Transmission Rate Tester For Leather / Textiles

  • Gas Transmission Rate Tester For Leather / Textiles
  • Gas Transmission Rate Tester For Leather / Textiles
Certification ISO 9001, CE
Model Number TQD-G1
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Gas Permeability Analyzer

,

Oxygen Permeation Analyzer
Leave a Message
Product Description

ISO 5636 Air Resistance Tester for Paper and Paperboard (Gurley Method)



TQD-G1 Air Resistance Tester is used to air resistance of paper and board based on ISO 5636.



Besides ISO 5636, TQD-G1 Air Resistance Tester also conforms to ISO 9237, ISO 4638, ISO 5636, GB/T 10655, GB/T 5453, GB/T 4689.22, GB/T 13764, ASTM D737, TAPPI T460, JIS P8117



Specifications

Specifications TQD-G1
Test Range of Pressure 0 ~ 1000 Pa
Test Range of Flux 0 ~ 30 L/min
Specimen Size Method A: 52 mm x 52 mm
Method B:Φ12 mm ≤ D(diameter) ≤ Φ71 mm
Port Size Φ8 mm PU Tubing
Instrument Dimension 502 mm (L) x 334 mm (W) x 298 mm (H)
Power Supply AC 220V 50Hz
Net Weight 27 kg



Test Methods

  1. Providing a constant air flux going through the specimen vertically, the air permeability could be obtained by measuring the pressure difference.
  2. Providing the constant pressure difference between two sides of the specimen, the air permeability could be obtained by measuring the air flux through specific area in the certain time.

Applications

  • Decorating Articles of Cars
  • Elastic and Porous Polymer Materials
  • Textiles
  • Leather
