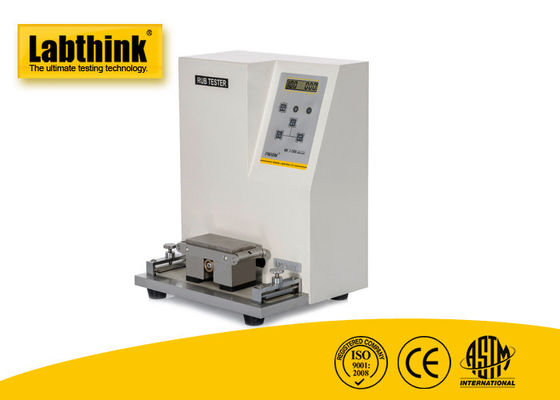

Laboratory Digital Ink Rub Tester With ISO 9001 / CE Certificate MCJ-01A
| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | MCJ-01A |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Rub Times | 0 ~ 999 | Specimen Size | 230 Mm (L) X 50 Mm (W) |
|---|---|---|---|
| Instrument Dimension | 260 Mm (L) X 230 Mm (W) X 360 Mm (H) | Net Weight | 22 Kg |
| Rub Speed | 43cpm | Power Supply | AC 220V 50Hz |
| High Light | Rub Test Machine,Rub Resistance Tester |
||
Product Description
Laboratory Professional Rub Tester to Measure Abrasion Resistance of Ink Layers
Laboratory Professional Rub Tester to Measure Abrasion Resistance is professionally designed for abrasion resistanceof surface coating layers of printed materials, e.g. ink layer or photosensitive (PS) coating. This instrument could effectively analyze the problems of poor abrasion resistance, ink layer falling off, lower printable force and poor hardness of coating layers of printed materials.
Features:
● This instrument is strictly designed according to standard requirements to ensure the accuracy of test data
● The instrument is controlled by micro-computer, with PVC operation panel, LCD and membrane switch, which is convenient for users to operate or view the test data
● Standard embedded rub panel ensures the even rub area and rub process is completely quiet
● Special design of power failure memory provides safe data operating environment
Technical Specifications:
| Specifications | MCJ-01A |
| Rub Pressure | 20 ±0.2 N |
| Rub Speed | 43 cpm |
| Rub Area | 155 mm (L) x 50 mm (W) |
| Rub Times | 0 ~ 999 |
| Specimen Size | 230 mm (L) x 50 mm (W) |
| Power Supply | AC 220V 50Hz |
| Instrument Dimension | 260 mm (L) x 230 mm (W) x 360 mm (H) |
| Net Weight | 22 kg |
Labthink Instruments Co.,Ltd provides excellent testing equipments and services for Labs, quality and safety control sections of worldwide industries, including pharmaceuticals, foodstuff, cosmetics, packaging, printing, adhesive, automotive, petroleum chemistry, environment, biology, new energy, construction, astronautics and electronics, etc.
