VAC-V2 Gas Permeability Tester For Barrier Materials Temperature / Humidity Control

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number VAC-V2
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Station 3 Advantage Temperature & Humidity Control
Test Method Differential Pressure Method Warranty 12 Months
Test Gases O2, N2 And CO2 Packaging Materials Including Polymers, Paper, Composites
High Light

Gas Permeability Analyzer

,

Oxygen Permeation Analyzer
Leave a Message
Product Description

ASTM D1434 Gas Permemability Tester for Barrier Materials



VAC-V2 Gas Permeability Tester is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, composite films, high barrier materials, sheeting and aluminum foils.



Features

  • Gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient of the specimen could be obtained at one operation
  • 3 distinct or equivalent specimens could be tested individually
  • Wide range and high precision temperature and humidity control
  • could be used to test poisonous, inflammable, and explosive gases

Standards



VAC-V2 Gas Permeability Tester conforms to ISO 15105-1, ISO 2556, GB/T 1038-2000, ASTM D1434, JIS K7126-1, YBB 00082003



Specifications



Test Range 0.05~50,000 cm3/m2·24h·0.1MPa
Temperature 5°C ~ 95°C
Humidity 0%RH, 2%RH ~ 98.5%RH, 100%RH
Teset Area 38.48 cm2

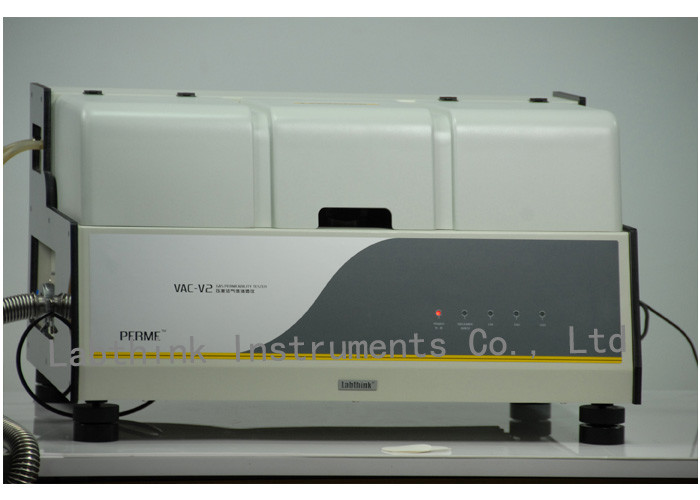

VAC-V2 Gas Permeability Tester For Barrier Materials Temperature / Humidity Control 0

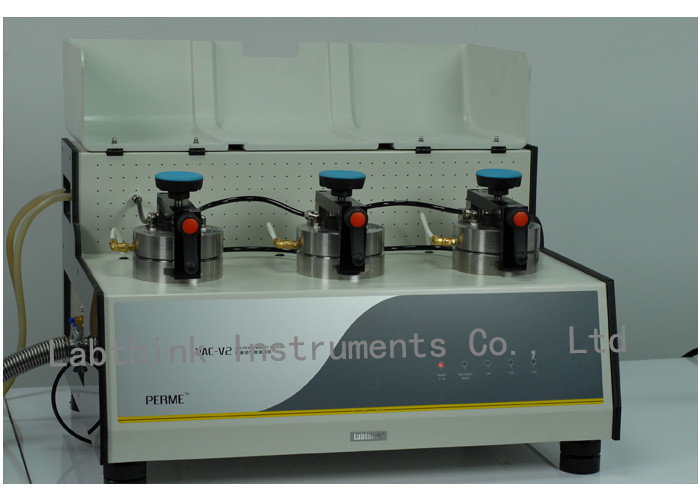

VAC-V2 Gas Permeability Tester For Barrier Materials Temperature / Humidity Control 1
