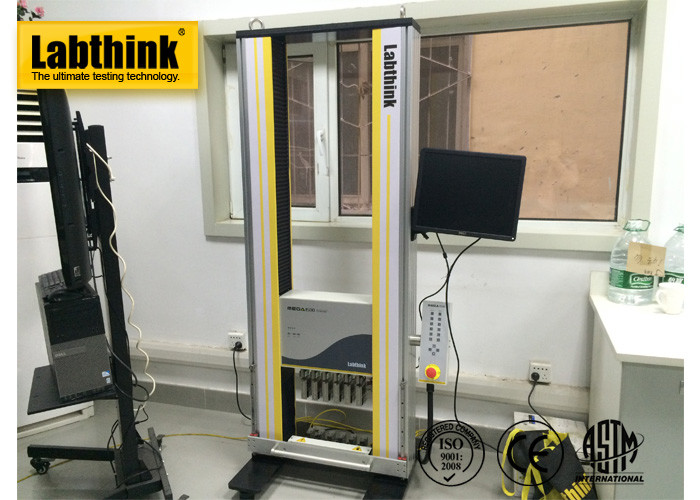

6 Stations Universal Tensile Testing Machine For Metal Sheeting / Textiles 1KN
| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | MEGA 1500 |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Work Stations | 6 | Accuracy | 1% FS |
|---|---|---|---|
| Stroke | 1200 Mm | Dimension | 850 Mm (L) X 700 Mm (W) X 2030 Mm (H) |
| Weight | 168 Kg | Package | Veneer Case |
| High Light | Universal Tensile Tester,Tensile Test Apparatus |
||
Product Description
6 Stations Universal Testing Machine for Metal Sheeting and Textiles (10KN)
MEGA 1500 Auto Tensile Testing Machine is professionally designed for the determination of tensile strength, peel strength, tear strength, heat seal strength and adhesiveness of plastic films, composite films, flexible packaging materials, adhesives, adhesive tapes, pressure sensitive tapes, medical patches, protective films, release paper, rubber and paper, etc.
Technical Specifications
| Specifications | MEGA 1500 |
|---|---|
| Load Cell Capacity | 500N(Standard) 50N, 100N, 250N, 1000N (Optional) |
| Accuracy | 1% FS |
| Test Speed | 1-500mm/min (Stepless Speed Change) |
| Number of Stations | 6 |
| Number of Specimens | 1~6 |
| Specimen Width | 25mm (Standard Sample Grip) |
| Clamping Way | Pneumatic Specimen Clamp |
| Stroke | 1200 mm |
MEGA 1500 Universal Testing Machine conforms to multiple standards including:
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904
Features
- Double-column ball screw driving mechanism ensures high precision and steady working of the instrumen
- 6 working stations and pneumatic specimen clamping facilitate to test multiple specimens simultaneously
- Multi-level over-travel protection, overload protect, automatic position reset and intelligent error alerts for safe test operation
- embedded computer controller system, with membrane switch is convenient for instrument operation
