Film Pendulum Impact Tester , Pendulum Impact Test Equipment 5J

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number FIT-01
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Impact Engery 1 J, 2 J, 3 J Resolution 0.001 J
Specimen Size 100 Mm X 100 Mm Or Ф100 Mm Dimension 600 Mm (L) X 390 Mm (W) X 600 Mm (H)
Net Weight 64 Kg Stadnard ASTM D3420
High Light

Dart Drop Impact Tester

,

Pendulum Impact Tester
Leave a Message
Product Description

ASTM D3420 Film Pendulum Impact Test Equipment for Flexible Packaging materials

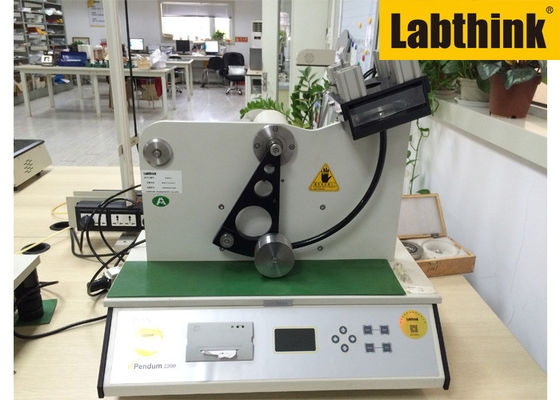

FIT-01 Film Pendulum Impact Tester is professionally applicable to the determination of impact resistance properties of pendulum of plastic films, sheets, composite films, aluminum foils and other materials.



Specifications

Specifications FIT-01 Pendulum Impact Tester
Impact Energy 1 J, 2 J, 3 J (Standard)
Resolution 0.001 J
Impact Head Size Ф25.4 mm, Ф19 mm, Ф12.7 mm (Customization is available)
Specimen Clamp Diameter Ф89 mm, Ф60 mm
Specimen Size 100 mm x 100 mm or Ф100 mm
Gas Supply Pressure 0.6 MPa (outside of supply scope)
Port Size Ф6 mm PU Tubing
Instrument Dimension 600 mm (L) x 390 mm (W) x 600 mm (H)



Principle

The impact resistance of films could be obtained by measuring the energy consumed by hemispheric impact head to make films ruptured, under the certain impacting conditions.
