ASTM D1709 Free Falling Dart Drop Impact Tester

Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number FDI-01
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Method Free Falling Dart Method Specimen Size > 150 Mm X 150 Mm
Warranty 12 Months Training Free, Door-to-door
Package Veneer Case Standards ASTM D1709, ISO 7765
High Light

Dart Drop Impact Tester

,

Pendulum Impact Testing Machine

Leave a Message
Product Description

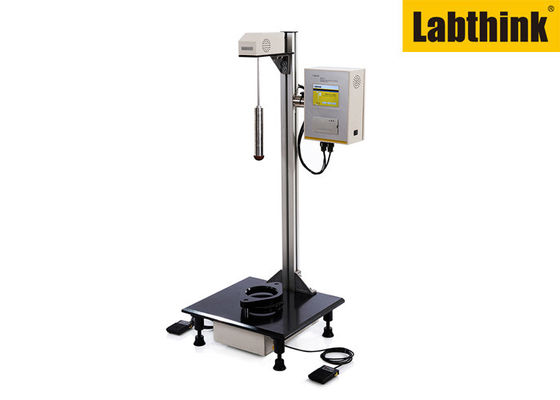

ASTM D1709 Free Falling Dart Method Impact Testing Equipment for Plastic Films, Foils



FDI-01 Free Falling Dact Impact Tester is an easy-to-use, ergonomically designed instrument used to measure the impact resistance of plastic film, coated paper and other materials utilizing the free falling dart method.





Standards

FDI-01 Free Falling Dart Impact Tester conforms to ASTM D1709, ISO 7765



Specifications

Test Range Method A: 50~2000 g
Method B: 300~2000 g
Specimen Size > 150 mm x 150 mm
Instrument Dimension

Method A: 500 mm (L) x 450 mm (W) x 1320 mm (H)

Method B: 500 mm (L) x 450 mm (W) x 2160 mm (H)

Net weight 70kg



Applications

FDI-01 Free Falling Dart Impact Tester can be used for plastic films, sheets and composite films. paper and paperboard, aluminum foils



Features

  • combined method A & method B in one instrument
  • touch screen operation surface
  • professional software
  • built-in observation light
  • RS232
