Professional Friction Testing Equipment / Portable Friction Tester High Precision

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number FPT-F1
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Properties COF, Peel Test Standards ASTM D1894, ASTM D3330
Accuracy 0.5% FS Test Speed 50, 100, 150, 200, 250, 300, 500 Mm/min
Temperature Room Temperature ~ 99.9°C Dimension 850 Mm (L) X 350 Mm (W) X 290 Mm (H)
High Light

Coefficient Of Friction Tester

,

Coefficient Of Friction Measurement Device
Leave a Message
Product Description

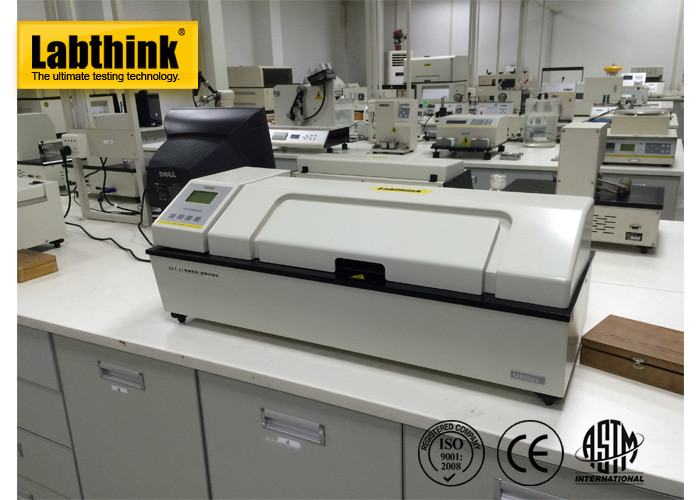

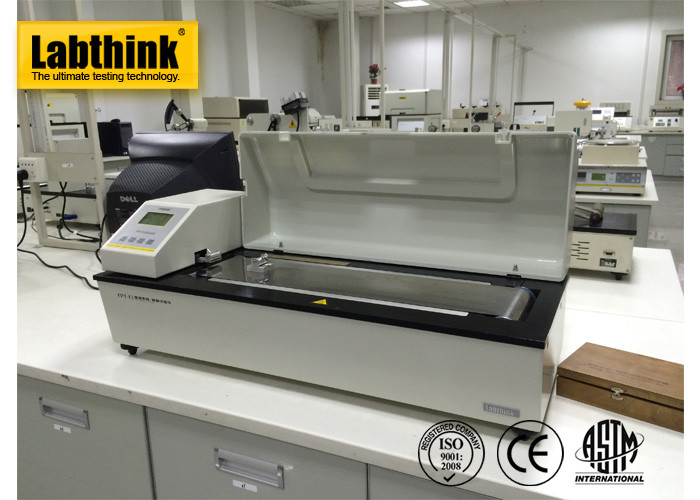

Static and Kinetic Coefficient of Friction (COF) Tester Machine / Peel Test Machine



Labthink Static and Kinetic COF Tester (Coefficient of Friction Tester) / Peel Tester provides more information with less keystrokes and provides the ability to create, save, and password protect test set ups.



The COF test mode can be configured to measure the static and kinetic coefficient of friction. The Peel Tester mode can test the seal strength, and peel properties of plastic film, paper, paperboard, adhesives, corrugated/cardboard, labels and packaging materials. The Peel Tester can be configured to perform 180° peel tests, 90° peel tests, and T-peel tests.



Features

  • 7 test speeds and 3 test ranges could be selected as required
  • Wide range and high-precision of automatic temperature control system to support tests at different temperatures
  • controlled by computer and micro processing unit which is convenient for user's operation
  • Professional operating software supports superposition analysis of test curves
  • Equipped with RS232 port

Industry Standards

  • ASTM D1894 (COF for Plastics)
  • ASTM D3330 (Peel Adhesion for Pressure Sensitive Tape 180°)
  • ASTM F88 (Seal Strength for Flexible Barrier Material
  • ISO 8295 (COF for Plastics)
  • TAPPI T816 (COF for Corrugated and Paperboard)

Technical Specifications

Specifications FPT-F1
Capacity Range 0~5 N, 0~10 N, 0~30 N
Accuracy 0.5% FS
Mass of Sled 200 g (Standard)
100 g, 500 g, 1000 g, 1814 g, 2000 g are optional
Test Speed 50, 100, 150, 200, 250, 300, 500 mm/min
Temperature Room Temperature ~ 99.9°C
Power Supply AC 220V 50Hz
Instrument Dimension 850 mm (L) x 350 mm (W) x 290 mm (H)
Net Weight 30 kg
