NJY-20N Screw Torque Tester , Digital Torque Analyzer For Cosmetic Bottle
| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | NJY-20N |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Standards | ASTM D2063, ASTM D3198, ASTM D3474 | Applications | Open Force And Lock Force |
|---|---|---|---|
| Warranty | 12 Months | Package | Veneer Case |
| Power Supply | AC 220V 50Hz | ||
| High Light | Bottle Cap Torque Tester,Bottle Torque Tester |
||
Product Description

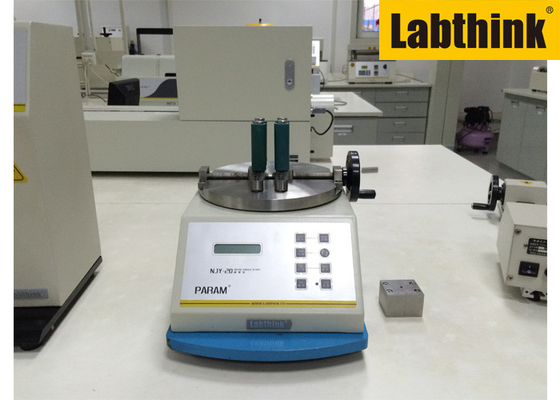

Labthink Featured NJY-20N Screw Torque Tester for Cosmetic Bottle Cap Opening Force Test
Labthink NJY-20 Srew Torque Tester can be used to measure the open force and lock force of the caps of bottles, suction and flexible tube packages. The open and lock forces of bottle caps are important online and offline technical parameters of production.
Features
- Measurement in N.m, Kg.cm and Lb.in
- High Precision, High Resolution, Quick Sampling
- Precise Measurement of Cap Torque
- Real Time, Peak, Peak Hold and Automatic Peak Options
- LCD Display with Red & Green Indicating Lights with Buzzer
Specifications
| Load Cell Capacity | 20 Nm (Standard) |
| 40 Nm (Optional) | |
| 50 Nm (Optional) | |
| Accuracy | 1% FS |
| Resolution | 0.001Nm |
| Clamp Range | Φ5 mm ~ Φ170 mm (Diameter) |
| Statistical Analysis Allowance | 1~9 |
Applications
| Basic Applications |
Bottle Package Open and lock force test of the bottle caps for bottled packages for food, pharmaceuticals, e.g. beverage or tablet bottles |
|
Flexible Tube Package Open and lock force test of flexible tube packages for food, pharmaceuticals and cosmetics, e.g. eye-drop, hand cream and shoe polish, etc. |
|
| Extended Applications |
Screws Open and lock force test of the screws |
|
Vacuum Flask and Vacuum Cup Open and lock force test of the caps of vacuum flasks and vacuum cups |
