Large Capacity Box Compression Testing Machine For Shipping Containers
| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | i-Boxtek 1700 |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Standards | ASTM D642 | Deformation Resolution | 0.1mm |
|---|---|---|---|
| Net Weight | 180 Kg | Power Supply | AC (85~264)V (50~60) Hz |
| Production Ability | In Stock | Warranty | 12 Months |
| High Light | Compressive Strength Testing Machine,Corrugated Box Compression Tester |
||
Product Description

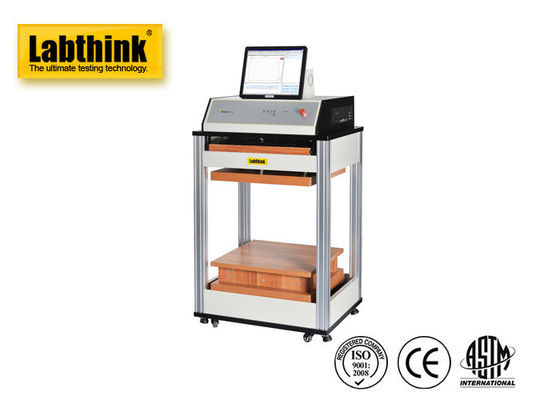

Large Capacity Box Compression Testing Machine For Shipping Containers
i-Boxtek 1700 Box Compression Testing Machine to test the compressive resistance and quality of paperboard boxes, corrugated boxes, cartons, fiberboards and many more.
The Box Compression Testing Machine is very easy to operate and offers highly accurate test results. Labthink provides two models of Compressive resistance tester, i.e. XYD-15K (Max Load 45KN) and I-Boxtek 1700 (max load 9KN)
Features
- Over-load protection, maximum stroke protection and error alert provide a safe test operation
- Three test modes are available: crushing force test, stacking test A and stacking test B
- Windows operation interface and can be easily operated with a mouse and a keyboard
- Miniaturization and integration structure design is suitable for various test environment
- conforms to ASTM D642, ASTM D4169,TAPPI T804, ISO 12048, JIS Z0212
Specifications
Item
| Specification | |
|---|---|
| Load Cell Capacity | 9 KN |
| Accuracy | 1% FS |
| Force Resolution | 1 N |
| Deformation Resolution | 0.1 mm |
| Specimen Height | 100 mm ~ 600 mm |
| Test Speed | 5 mm/min, 10 mm/min, 12.7 mm/min |
| Test Space | 0.6 m (L) x 0.6 m (W) x 0.61 m (H) |
| Instrument Dimension | 0.65 m (L) x 0.81 m (W) x 1.62 m (H) |
| Power Supply | AC (85~264)V (50~60) Hz |
