Computer Controlled Electronic Torque Tester , Manual Bottle Torque Tester
Test Modes | Open Force And Lock Force | Product Name | Torque Tester |
---|---|---|---|
Instrument Dimension | 350 Mm (L) X 240 Mm (W) X 140 Mm (H) | Net Weight | 19 Kg |
Training | Free, Door-to-door | Warranty | 12 Months |
High Light | Digital Torque Tester,Bottle Torque Tester |
Intelligent Digital Bottle Cap Torque Tester ASTM D3474

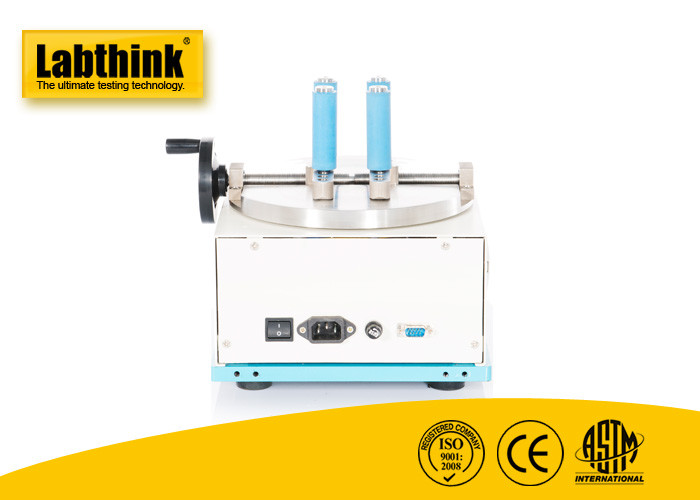

Bottle Cap Torque Tester is an manual torque tester to measure open force and closure force of the caps of bottles, suction and flexible tube packages. The open and lock forces of bottle caps are important online and offline production parameters. They can influence the transportation and consumption of products.
Techinical Specifications
Load Cell Capacity | 20 Nm (Standard) |
40 Nm (Optional) | |
50 Nm (Optional) | |
Accuracy | 1% FS |
Resolution | 0.001Nm |
Clamp Range | Φ5 mm ~ Φ170 mm (Diameter) |
Standards
ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034, GB/T 17876
Features

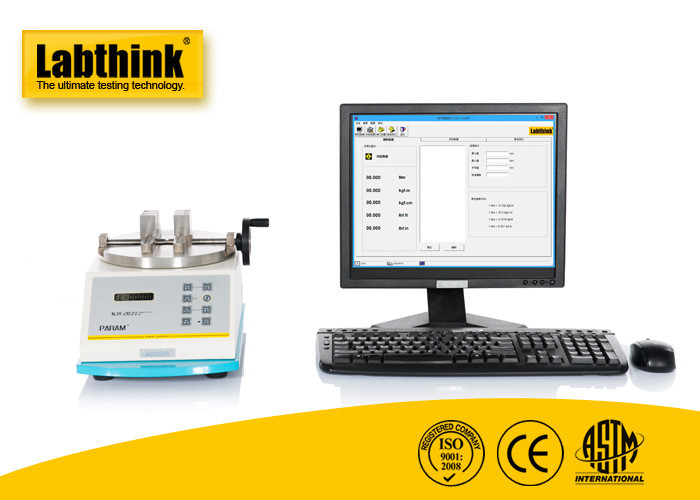

- Controlled by computer
- 2 test modes
- Automatic retaining of peak value and recording the test results
- Standard testing units
- Designs of overload protection, automatic zeroing and error alert
- RS232
