| Place of Origin | China |
|---|---|
| Brand Name | Labthink |
| Certification | ISO 9001, CE |
| Model Number | RGT-01 |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Product Details
| Vacuum | 0 ~ -90 KPa | Instrument Dimensions | 580 Mm (L) X 320 Mm (W) X 540 Mm (H) |
|---|---|---|---|
| Net Weight | 61 Kg | Warranty | 12 Months |
| Dimension | 580 Mm (L) X 320 Mm (W) X 540 Mm (H) | Power | AC 110V 60Hz |
| High Light | Oxygen Headspace Analyzer,Residual Oxygen Analyzer |
||
Product Description

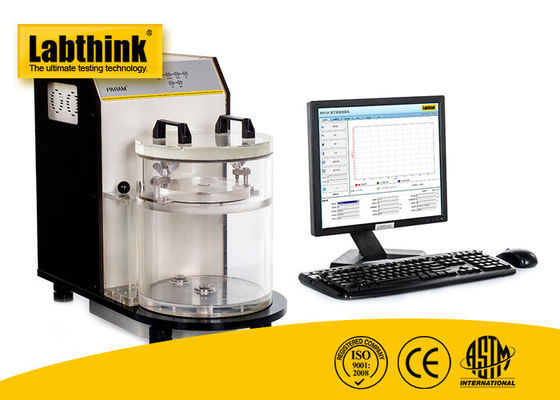

Differential Pressure Method Residual Gas Oxygen Analyzer for Flexible Packages
This equipment provide the quantitative analysis of seal performance and residual oxygen for vacuum packages. This instrument is based on the combination of differential pressure method and fluid level analysis technique.
Principle:
The vacuum test cell is composed of an outer chamber and an inner chamber. Before the test, the inner chamber, where the test specimen is placed, is completely filled with water and sealed with the sealing plate. The outer chamber, which is also the measuring chamber, is slowly injected with water to a designated level and sealed. Both chambers are thereafter evacuated until the test specimen expands. The residual oxygen within the specimen is obtained by fluid level analysis technique associated with corresponding calculations.
Features:
● Provides the quantitative analysis of seal performance and residual oxygen for various flexible vacuum packages.
● Top quality parts and components made by world famous brands are used to ensure reliable overall product performance.
● All test parameters can be set flexibly for convenient operation.
● The system can be easily operated by a standard monitor, a keyboard and a mouse; without requiring a PC.
Specifications:
| Specifications | Package Test |
| Test Range (Residual Gas) | 0 ~ 15 mL(standard) |
| Note: As a default setting, residual oxygen volume can be obtained by multiplying this value by 20.9%. Customization is available for other test range. | |
| Accuracy (Residual Oxygen) | ±0.1 mL (Gas volume is 0 - 5 mL) |
| ±0.3 mL (Gas volume is 5 - 10 mL) | |
| ±0.3 mL (Gas volume is 5 - 10 mL) | |
| Vacuum | 0 ~ -90 KPa |
| Accuracy | 0.25 KPa |
| Port Size | DIA 6 mm |
| Instrument Dimensions | 580 mm (L) x 320 mm (W) x 540 mm (H) |
| Power | AC 220V 50Hz |
| Net Weight | 61 kg |
