OEM / ODM Available Tear Testing Machine For Fabric and Textiles

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number SLY-S1
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Standards ASTM D1922, ASTM D1424, ASTM D689 Applications Fabrics & Textiles
Instrument Dimension 480 Mm (L) X 380 Mm (W) X 560 Mm (H) Net Weight 23.5 Kg (Basic Pendulum Of 200 Gf)
Warranty 12 Months Package Standard Veneer Case
High Light

Paper Tearing Machine

,

Elmendorf Tearing Strength Tester
Leave a Message
Product Description

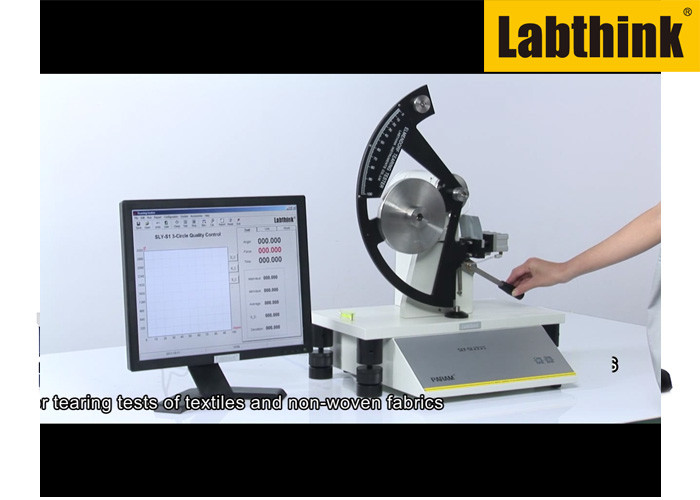

ASTM D1424 Digital Elmendorf Tear Testing Machine for Fabric and Textile



Digital Elmendorf Tear Testing Machine for Fabric and Textile is used to determine the force required to propagate a single-rip tear starting from a cut in a fabric and using a falling-pendulum (Elmendorf-Type) apparatus



Principle:
Lift the pendulum up to a certain height to give it an initial potential energy. The pendulum tears the specimen while swinging down. Computer calculates the decreased energy caused by tearing to obtain the required force for tearing.



Features:

  • SLY-S1 Elmendorf Tear Testing Machine is controlled by computer with automatic and electronic measurement which is convenient for the operation.
  • Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively.
  • Computer assisted horizontal adjustment system could maintain the instrument optimum status.
  • Equipped with pendulums of multiple capacities.
  • Professional software supports multi-unit data output.



Applications:
1. Plastic films and sheets e.g. polyolefin, polyester and aluminum plastic composite films
2. Paper and Paperboard
3. Textiles
4. Heavy Package Bags
5. Rubber Gloves
6. Wrapping Films
7. Paper Metro Tickets



Specifications

  SLY-S1 Elmendorf Tear Testing Machine
Pendulum Capacity 200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf
Gas Supply Pressure 0.6 MPa (outside of supply scope)
Port of Gas Supply Φ4 mm PU Tubing
Instrument Dimension 480 mm (L) x 380 mm (W) x 560 mm (H)
Power Supply AC 220V 50Hz
Net Weight 23.5 kg (Basic Pendulum of 200 gf)



OEM / ODM Available Tear Testing Machine For Fabric and Textiles 0

Labthink Instruments Co.,Ltd provides excellent testing equipments and services for Labs, quality and safety control sections of worldwide industries, including pharmaceuticals, foodstuff, cosmetics, packaging, printing, adhesive, automotive, petroleum chemistry, environment, biology, new energy, construction, astronautics and electronics, etc.



OEM / ODM Available Tear Testing Machine For Fabric and Textiles 1
