Easy Operate Gas Permeability Analyzer Coulometric Method

  • img.alt
  • img.alt
Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number OX2/230
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Test Method Coulometric Method Applications Films And Packages
Warranty 12 Months Packages Veneer Case
Instrument 670 Mm (L) X 410 Mm (W) X 310 Mm (H) Net Weight 48 Kg
Temperature 15°C~55°C
High Light

Gas Transmission Rate Tester

,

Oxygen Permeation Analyzer
Leave a Message
Product Description

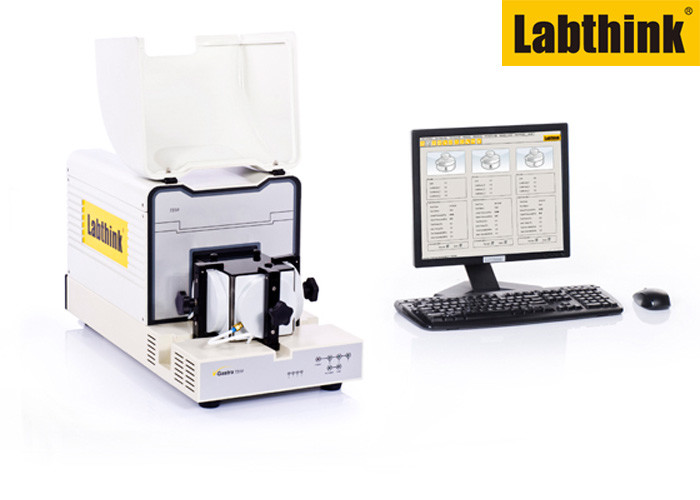

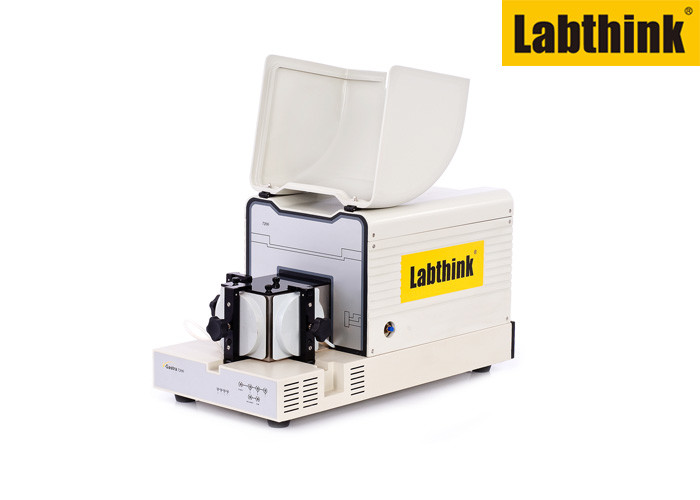

Precise Oxygen Permeation Analyzer for PET Bottles and Flexible Containers



OX2/230 Oxygen Permeation Analyzer is a versatile and easy to operate oxygen permeation analyzer with 2 stations for testing films or packages. With the widest measurement range in the market, this analyzer can be used for research and development permeation testing and has the speed required for use in Quality Control testing.



Test Materials

OX2/230 Oxygen Permeation Analyzer can be used of Barrier films, PET Bottles, Containers, Flexible Pouches, Bags Testing



Standards

OX2/230 Oxygen Permeation Analyzer conforms to ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, GB/T 19789, JIS K7126-2





Technical Specifications

Specifications Film Test
Film Range 0.01~10,000 cm3/m2·d
Resolution 0.01 cm3/m2·d
Temperature Range 15°C~55°C
Humidity Range 0%RH, 15%RH~90%RH, 100%RH
Instrument Dimension 670 mm (L) x 410 mm (W) x 310 mm (H)
Specimen Thickness ≤3 mm
Net weight 48kg



Features

  • precision temperature, humidity and flow control providing consistent and repeatable test conditions
  • Wide measurement range providing research grade flexibility
  • Coulometric oxygen sensor enhances analytical precision
  • professional software for data analysis
  • Reference film available
  • user-friendly windows operation



About Labthink

Labthink is a multinational technology company that is devoted to helping customers succeed, employees grow and brands gain respect. The headquarters of Labthink is in Jinan, China; its international headquarters is in Boston, USA; and its SAC IT Center is in Hong Kong, China. The company has more than 50 international distributors and more than 30 international service providers.
