OEM / ODM Accepted Torque Testing Machine For Bottle Pilfer - Proof Caps

Place of Origin China
Brand Name Labthink
Certification ISO 9001, CE
Model Number i-process 1600
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days
Product Details
Use Condition On Site Applications Bottle Caps
Capacity 50NM Resolution 0.001Nm
Clamp Φ5 Mm ~ Φ100 Mm Warranty 12 Months
High Light

Digital Torque Tester

,

Bottle Torque Tester

Leave a Message
Product Description

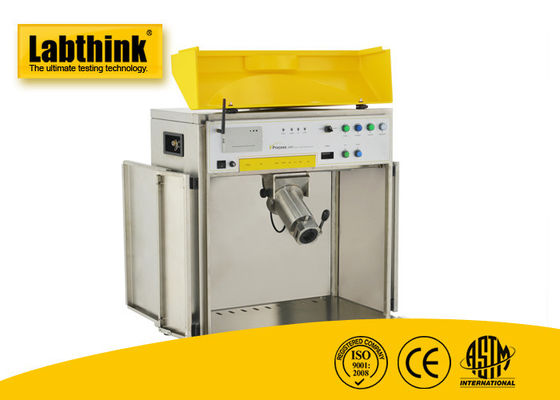

On-Site Digital Torque tester for bottle Pilfer-proof caps



i-Process 1600 On-Site Digital Torque Tester is professionally designed for the on-site torque value determination of caps used in bottles, spout pouches and flexible tube packages. The open or lock force is the main parameter that seriously controlled by manufacturers in the production process. Both product transportation and end-market consumption are greatly influenced by this index. i-Process 1600 is featured with high test precision and repeatability, which makes it a necessary testing instrument for on-site torque value determination. Furthermore, the instrument supports DataShieldTM system for comprehensive online data management.



Specifications

Item Specifications
Load Cell Capacity 20 Nm (Standard)
40 Nm (Optional)
50 Nm (Optional)
Accuracy 1% FS
Resolution 0.001Nm
Clamp Range Φ31 mm ~ Φ32 mm (Standard)
Φ5 mm ~ Φ100 mm (Optional)
Instrument Dimension 600 mm (L) x 450 mm (W) x 600 mm (H)
Power Supply AC 220V (47~ 63) Hz
Net Weight 30 kg





Features

  • On-Site Use
  • Open force and lock force
  • dust or water proof structure
  • Equipped with barcode scanner and micro printer
