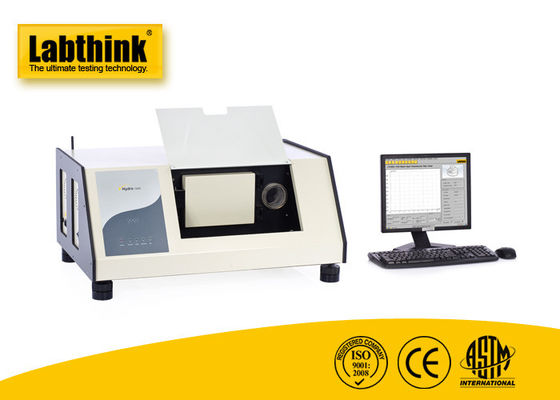

Inverted Cup Method Water Vapor Permeability Testing Instrument For Barrier Materials I-Hydro 7300

Inverted Cup Method Water Vapor Permeability Testing Instrument For Barrier Materials I-Hydro 7300

    • Inverted Cup Method Water Vapor Permeability Testing Instrument  For Barrier Materials I-Hydro 7300
    • Inverted Cup Method Water Vapor Permeability Testing Instrument  For Barrier Materials I-Hydro 7300
  • Inverted Cup Method Water Vapor Permeability Testing Instrument  For Barrier Materials I-Hydro 7300

    Product Details:

    Place of Origin: China
    Brand Name: Labthink
    Certification: ISO 9001, CE
    Model Number: i-Hydro 7300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Veneer Case
    Delivery Time: 3-7 work days
    Supply Ability: 1 set per 3 work days
    Detailed Product Description
    Test Method: Gravimetric Method (Inverted Cup) Advanced: Online Data Management System For Packaging Testing
    Standards: ASTM E96, ASTM D1653, ISO 2528 Environment Monitoring Systes: Available
    Dimension: 580 Mm (L) X 680 Mm (W) X 470 Mm (H) Weight: 76 Kg

    Inverted Cup Method Water Vapor Permeability Testing Instrument of Barrier Materials



    i-Hydro 7300 Water Vapor Permeability Testing Instrument is designed to determine the water vapor transmission rate of plastic films, composite films, sheeting, high-barrier materials, solar back sheets, aluminum foils, water proof membrane, thermal insulation materials, artificial skin and other materials.



    This Water Vapor Permeability Testing Instrument can apply to inverted cup method to measure the water vapor permeability of materials using Labthink speicific fixtures.



    The water vapor permeability testing instrument can be used with our advanced Online Data Management System for packaging testing, which comes with two versions to meet distinct needs of our clients



    Software

    • Interface: Windows-based operating interface
    • Statistics: easy calculation for historical results, instrument usage, energy consumption, and large statistical information
    • Data Comparison: by presetting target value and range, the system automatically generates data comparison after each test and intelligently judges whether the specimen passes or fails the test
    • Test Report: can provide detailed test reports in various customized patterns

    Functionality

    • Based on Water Method (ASTM E96) and strictly conforms to testing standards
    • Individually and periodically weighing mechanism for 3 test dishes
    • Wide range and automatic temperature and humidity control system to support various non-standard test conditions
    • Standard air velocity enables uniform humidity control and improves the testing accuracy
    • Convenient fast-access calibration port for temperature and humidity
    • Reference film or standard weight for fast and accurate calibration

     Specifications



    Test Range 0.1~10,000 g/m2·24h (Standard)
    Test Accuracy 0.01 g/m2·24h
    Test Temperature 15 °C~55 °C (Standard)
    Accuracy ±0.1 °C (Standard)
    Test Humidity 10%~98% RH (standard is 90% RH)
    Accuracy ±1% RH
    Air Velocity 0.02~0.3 m/s (customization available)
    Test Area 33 cm2





    Inverted Cup Method Water Vapor Permeability Testing Instrument  For Barrier Materials I-Hydro 7300



    Inverted Cup Method Water Vapor Permeability Testing Instrument  For Barrier Materials I-Hydro 7300
