Eco Friendly Gas Permeability Tester / Permeability Measurement Instruments forthin polymeric film

Eco Friendly Gas Permeability Tester / Permeability Measurement Instruments forthin polymeric film

    • Eco Friendly Gas Permeability Tester / Permeability Measurement Instruments forthin polymeric film
    • Eco Friendly Gas Permeability Tester / Permeability Measurement Instruments forthin polymeric film
    • Eco Friendly Gas Permeability Tester / Permeability Measurement Instruments forthin polymeric film
  • Eco Friendly Gas Permeability Tester / Permeability Measurement Instruments forthin polymeric film

    Product Details:

    Place of Origin: China
    Brand Name: Labthink
    Certification: ISO 9001, CE
    Model Number: OX2/230

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Veneer Case
    Delivery Time: 3-7 work days
    Supply Ability: 1 set per 3 work days
    Detailed Product Description
    Standards: ASTM D3985, ASTM F1927 Test Range: 0.01~65000cm3/m2·d
    Temperature: 15°C~55°C Humidity: 0%RH, 35%RH~90%RH
    Instrument: 690 Mm (L) X 350 Mm (W) X 360 Mm (H) Net Weight: 70 Kg

    Precise Oxygen Permeability Tester for Food & Medical Packaging (ASTM D3985)

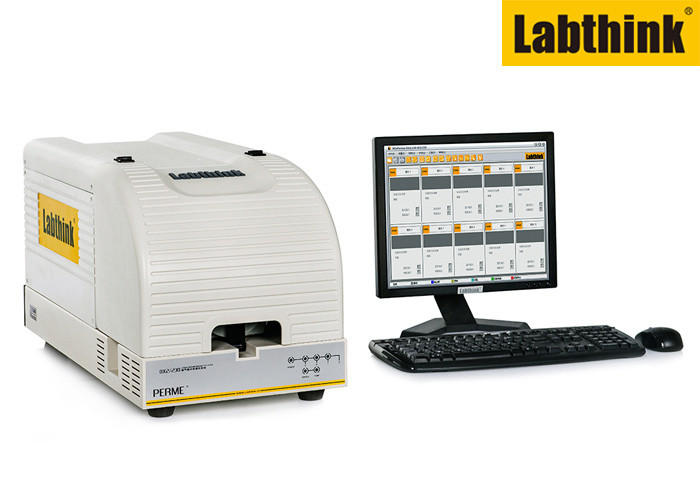

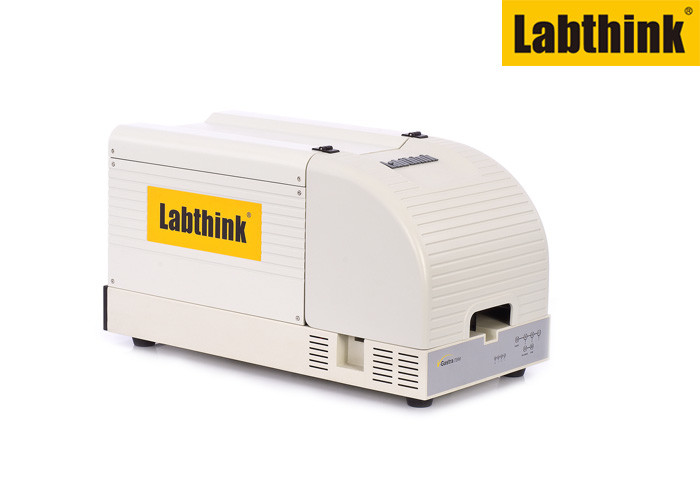

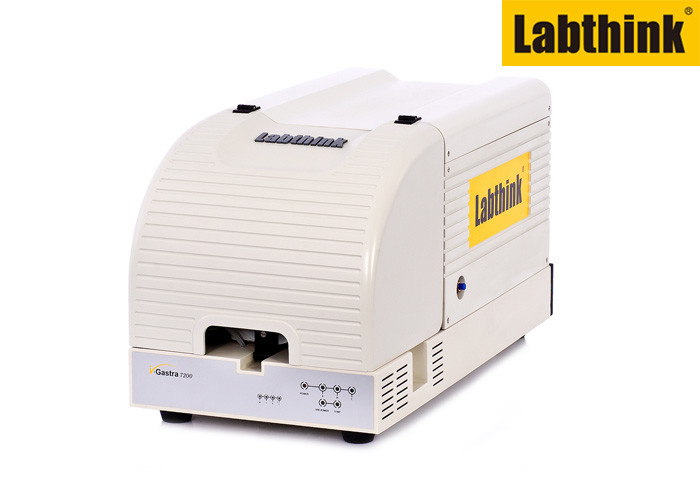

    OX2/230 Oxygen Permeability Tester is professional equipment to measure oxygen transmission rate through barrier materials under different oxygen density condition.



    Test Materials

    Food and Medical Packaging Including composited films, finished packages, blister packs, plastic tubes, bottles



    Standards

    OX2/230 Oxygen Permeability Tester conforms to ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, GB/T 19789, JIS K7126-2





    Technical Specifications

    Specifications Film Test
    Test Range 0.01~65,000 cm3/m2·d
    Resolution 0.001 cm3/m2·d
    Temperature Range 15°C~55°C
    Humidity Range 0%RH, 35%RH~90%RH
    Instrument Dimension 690 mm (L) x 350 mm (W) x 360 mm (H)



    Features

    • Wide range temperature and humidity
    • 3 test stations with independent results
    • professional software for data analysis
    • Reference film available
    • user-friendly windows operation

    Eco Friendly Gas Permeability Tester / Permeability Measurement Instruments forthin polymeric film



    Eco Friendly Gas Permeability Tester / Permeability Measurement Instruments forthin polymeric film

    Related Products

    1. OX2/231 Oxygen Permeability Tester
    2. VAC-V2 Gas Permeability Tester
